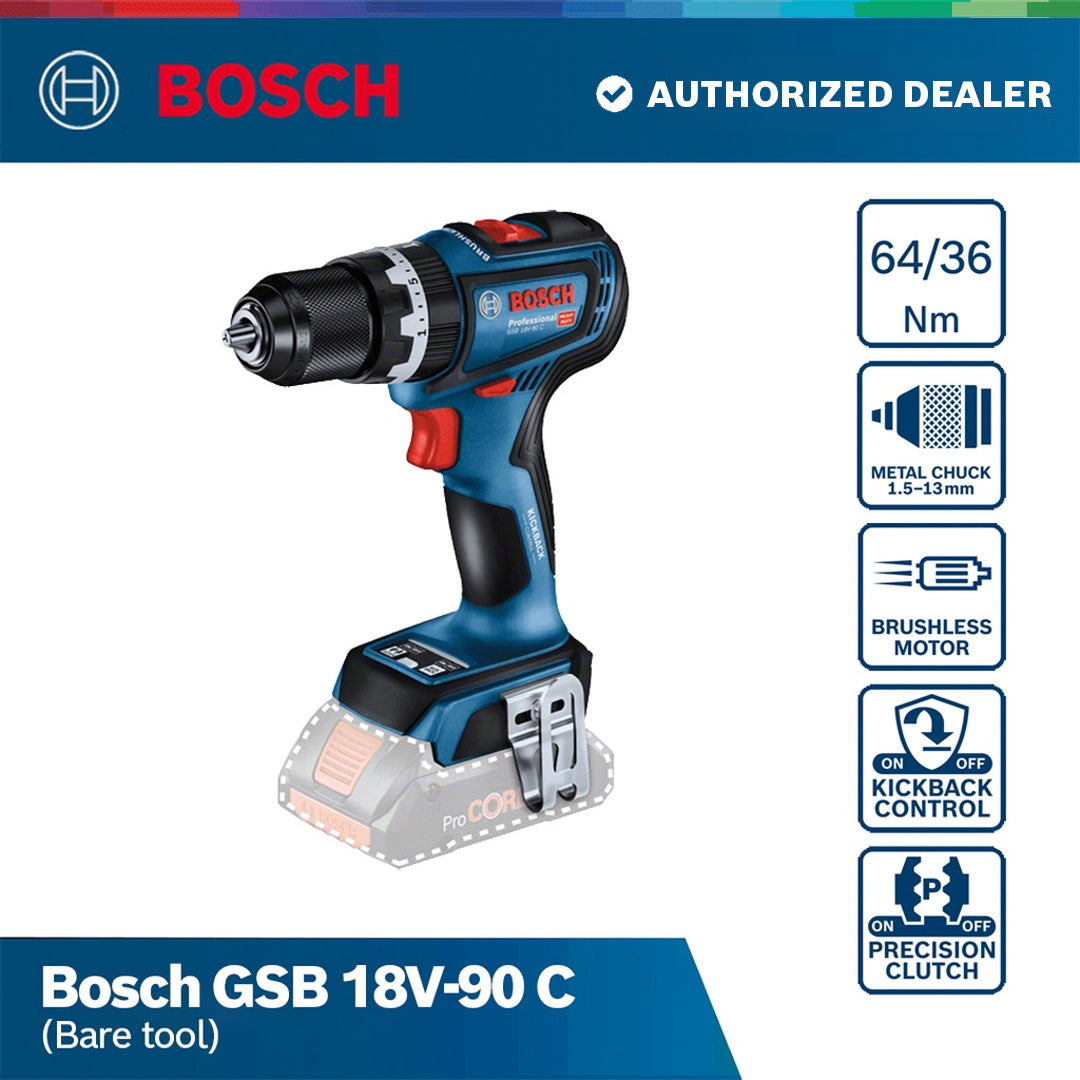

Powerful cordless impact drill with compact head length and perfect tool control
Powerful brushless motor delivers high power with 64 Nm and 2,100 rpm maximizing your efficiency on the job site
13-mm metal chuck ensures increased robustness and great torque transfer for every job
Switchable Kickback Control and switchable Precision Clutch ensure perfect control and high protection for the user and tool

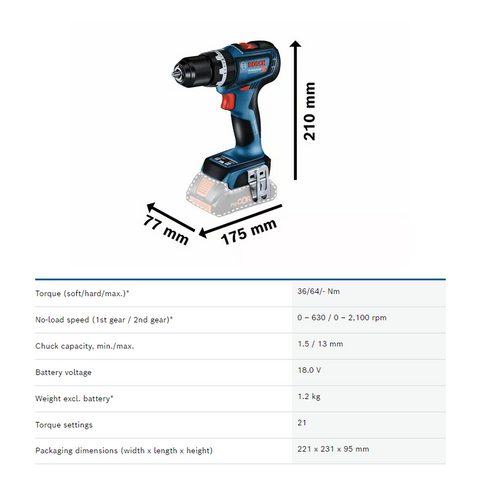

TECHNICAL DATA
Additional data
Battery voltage
18.0 V
Torque (soft/hard/max.)
36/64/- Nm
No-load speed (1st gear / 2nd gear)
0 – 630 / 0 – 2,100 rpm
Weight excl. battery
1.2 kg
Chuck capacity, min./max.
1.5 / 13 mm
Torque settings
21
Drilling diameter
Max. drilling diameter in wood
68 mm
Max. drilling diameter in steel
13 mm
Screw diameter
Max. screw diameter
12 mm
Total vibration values (Drilling in metal)
Vibration emission value ah
1.5 m/s²
Uncertainty K
1.2 m/s²
Total vibration values (Impact drilling in masonry)
Vibration emission value ah
11.8 m/s²
Uncertainty K
1.5 m/s²
Noise/vibration information
Sound pressure level
99 dB(A)
Sound power level
88 dB(A)
Uncertainty K
5 dB
Drilling in metal
Vibration emission value ah
1.5 m/s²
Uncertainty K
1.2 m/s²
Impact drilling in masonry
Vibration emission value ah
11.8 m/s²
Uncertainty K
1.5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 99 dB(A); Sound power level 88 dB(A). Uncertainty K= 5 dB.
